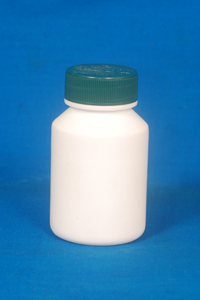

HDPE BOTTLES



HDPE 20 ml to 200 ml BOTTLES
	Parameters	Specification
		20ml Bottle	50ml Bottle	100ml Bottle	200 ml Bottle
	1. Item Weight	4.32gms	7.17gms	12.0gms	19.10gms
	2. Material used confirmed	HDPE	HDPE	HDPE	HDPE
	3. Total Height	49.3 mm	66.33 mm	86.78 mm	110 mm
	4. Neck Internal Diameter	13.5 mm	25 mm	26.6 mm	33.6 mm
	5. Neck OD with Thread	21.4 mm	34.3 mm	34.3 mm	46.9 mm
	6. Neck OD without Thread	20.8 mm	31.98 mm	31.98 mm	41.94 mm
	7. Wall Thickness	0.75 mm	0.75 mm	0.75 mm	0.75 mm
	8. Bottle Diameter	29.9 mm	43.9 mm	49.4 mm	64.94 mm



HDPE 200 gm to 1000 gm BOTTLES
	Parameters	Specification
		200gm Bottle	400gm Bottle	500gm Bottle	1000gm Bottle
	1. Item Weight	18.33 gms	21.00gms	25.41 gm	51.12gms
	2. Material used confirmed	HDPE	HDPE	HDPE	HDPE
	3. Total Height	101.10mm	126 mm	133.3 mm	164.9 mm
	4. Neck Internal Diameter	30.2 mm	46.1 mm	45.2 mm	54.3 mm
	5. Neck OD with Thread	39.2 mm	54.1 mm	53.0 mm	64.3 mm
	6. Bottle Diameter	50.5 mm	61.8 mm	66.6 mm	82.2 mm



W.C. BOTTLE
	Parameters	Specification
	1. Item Weight	10 ± 0.5 g
	2. Total Height	69.4 ± 0.5 mm
	3. Height upto the shoulder	58.5±0.5mm
	4. Neck outer diameter with thread	31.9 ± 0.5 mm
	5. Bottle Diameter	41.5 ± 0.5 mm



20 gm  BOTTLE
	Parameters	Specification
	1. Item Weight	6.60 gms
	2. Material used confirmed	HDPE
	3. Total Height	70.25 mm
	4. Neck Internal Diameter	12.52 mm
	5. Neck OD with Thread	17.70 mm
